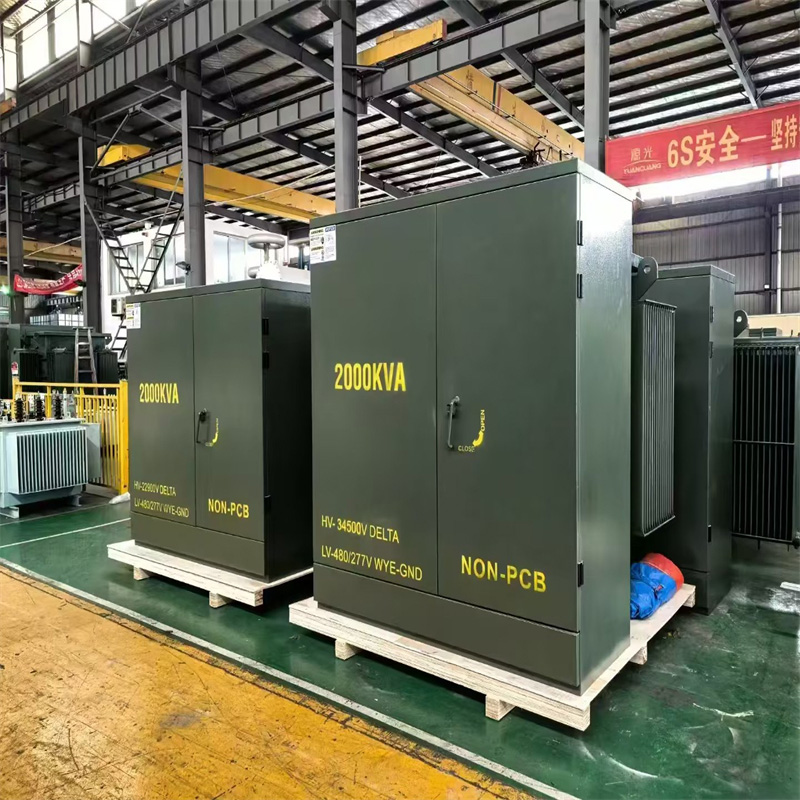

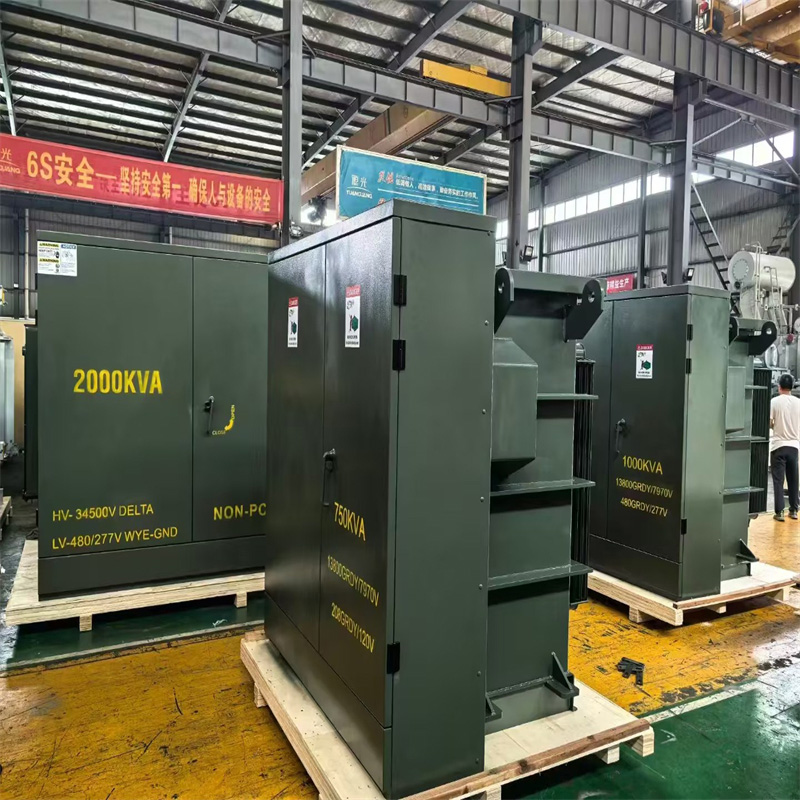

Padmounted Transformers

Pad-mounted transformers are compact, ground-mounted electrical devices designed for both residential and commercial power distribution. Available in both single-phase and three-phase models, these transformers ensure a safe, reliable, and efficient means of transforming electrical voltage for various applications. Typically installed in urban and suburban areas, they offer a low-maintenance and secure alternative to overhead systems. Ideal for utilities, they are engineered for durability and long-lasting performance.

Product Features and Specifications

Single-phase and three-phase pad-mounted transformers are designed to handle a wide range of voltage requirements, with ratings typically ranging from 10 kVA to 5000 kVA. These transformers are housed in a durable, weather-resistant steel enclosure that meets industry standards for safety. The high-voltage bushings, low-voltage terminals, and tap changer mechanisms are all carefully designed to ensure optimal load regulation and efficiency. Whether used for residential, commercial, or industrial applications, these transformers provide reliable voltage step-down and are designed to withstand harsh environmental conditions.

Transformer Structure and Design

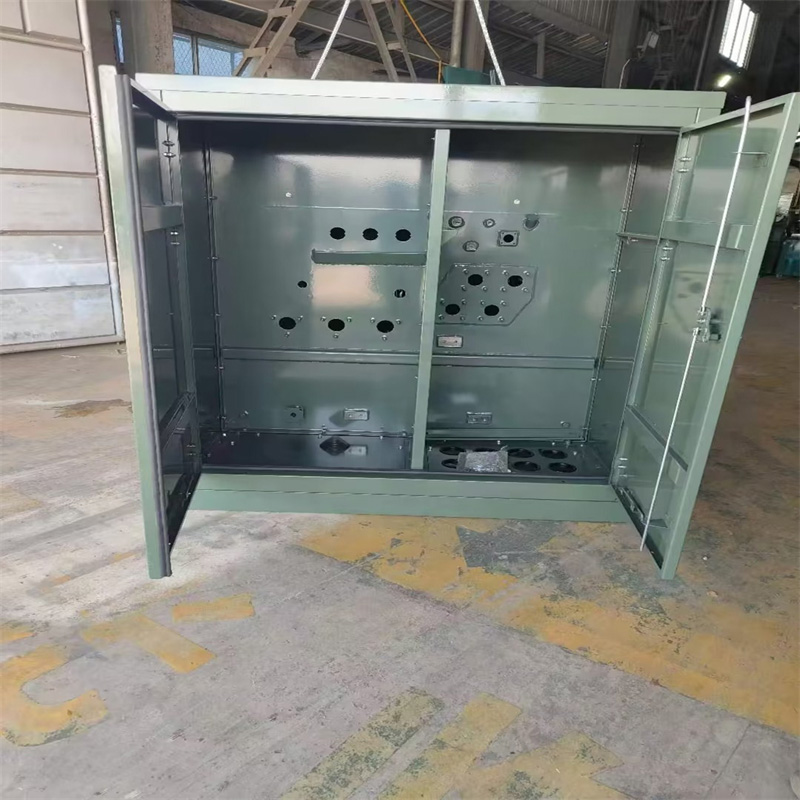

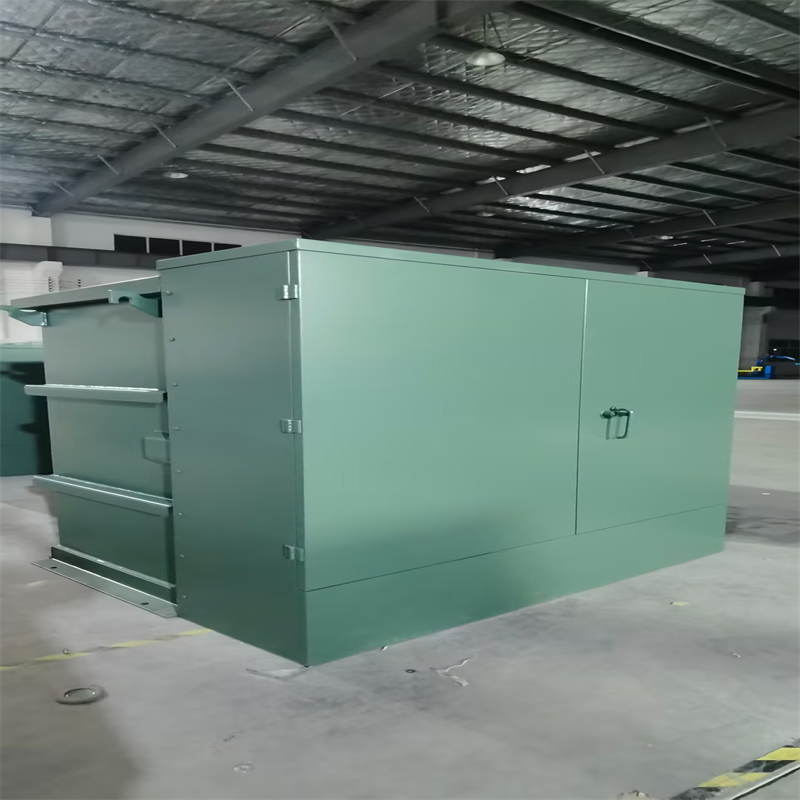

The pad-mounted transformer features a rugged, tamper-resistant steel enclosure that is both secure and easy to maintain. Inside, the transformer consists of high-quality copper or aluminum windings, a core, bushings, tap changer, and insulation materials. The tank is filled with high-grade mineral oil or biodegradable insulating fluids, offering exceptional dielectric properties and heat dissipation. The transformer’s design incorporates features such as ventilation openings and drainage valves to prevent moisture buildup and ensure proper cooling and operation.

Manufacturing and Production Process

Pad-mounted transformers are crafted using advanced manufacturing techniques and high-quality materials. The core is constructed using grain-oriented silicon steel laminations for minimal energy loss, while the windings are wound with precision to ensure uniform distribution of electrical current. The transformer undergoes rigorous testing, including dielectric strength tests, temperature rise tests, and load tests to verify its performance and safety. Once assembled, each unit is subjected to a final inspection and sealed for shipping to ensure it meets all industry standards and customer specifications.

Our product is built to deliver rest assured quality and unmatched durability.  Made from new raw materials, it offers a longer lifespan, ensuring reliable performance over time.  The transformer provides accurate voltage transformation, maintaining consistent and stable power output for your needs.  Designed with high strength materials, it boasts superior pressure resistance and rapid heat dissipation, effectively managing heat buildup to enhance efficiency.  Whether you're in demanding industrial settings or sensitive applications, this product guarantees resilience and reliability.  Choose with peace of mind and create with care, knowing that each component is crafted for excellence and long-term performance.

Our product is certified by national authoritative organizations and undergoes professional testing to ensure top performance. We use strict material selection and focus on exquisite craftsmanship to deliver excellent quality and durability. This guarantees a reliable, long-lasting product that meets the highest standards.
