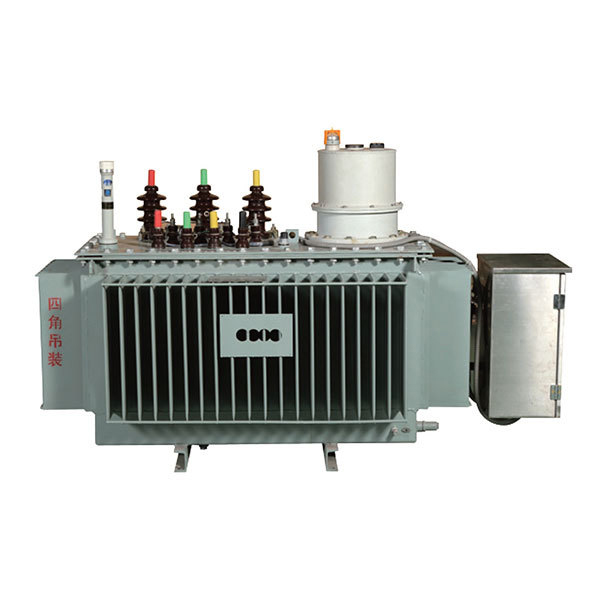

10KV S11-M Zt on load capacitive transformer

This load capacity adjustment transformer has two main features: first, it has two rated capacities, large capacity and small capacity, in order to adapt to different load requirements; second, it adopts an intelligent system to automatically adjust the transformer's own capacity, in order to realize real-time and appropriate power supply, and achieve the effect of energy saving and reduction of consumption.

In practical application, this transformer can realize load capacity adjustment, that is, when the load changes, the transformer can automatically adjust its own capacity to adapt to the load changes. In this way, not only can it avoid losses caused by load changes, but also improve the stability and reliability of the power system. At the same time, thanks to the intelligent system, this transformer will not cause any interruption to the power supply when adjusting its capacity, ensuring the continuity and stability of the power supply.

The design principle of this transformer is that at the load side of the transformer, the size of the load current is detected to determine the change of the load. When the load current increases, the transformer will automatically reduce its capacity to accommodate large loads; when the load current decreases, the transformer will automatically increase its capacity to accommodate small loads. In this way, the transformer can realize optimal operation under different load conditions, thus achieving the purpose of energy saving and consumption reduction.

There are certain differences between rural power grids and urban commercial, development and industrial areas in terms of load changes. In response to seasonal load changes, rural power grids can take corresponding measures to adjust; in response to diurnal load changes, urban power grids can respond by optimizing resource allocation and adjusting production activities. In practice, targeted measures should be taken according to the characteristics of load changes in different regions in order to improve the stability and operational efficiency of the power grid.

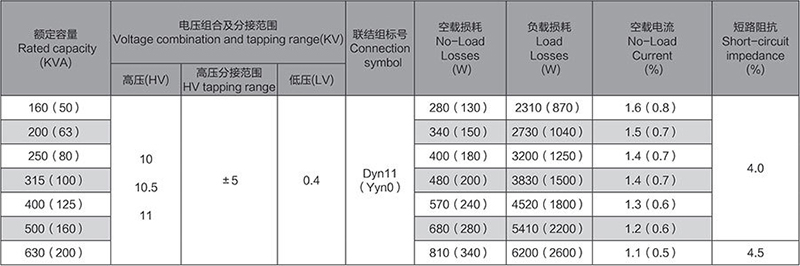

10KV S11-M · ZT series technical data

Note:

1. The parameters in parentheses are for small capacity.

2. For other connection groups and corresponding technical parameters, they are non optimal parameters and shall be negotiated between the user and the manufacturer.

3. According to user needs, distribution transformers with a high-voltage tapping range of ± 2 × 2.5% or other tapping ranges can be provided.

FAQ

We have a perfect ISO quality management system and certification, we sell products with a number of technical patents, CCC certification and other honors and qualifications. Our product quality is guaranteed, delivery speed is fast, after-sales service is guaranteed, and the price is competitive.

To ensure the quality of our products, we have a set of perfect quality management system. Before products are shipped, we conduct final inspections to ensure that each product meets our quality standards. Our products include oil-immersed transformers, dry-type transformers, switchgear, circuit breakers and AC contactors, etc. We offer a full range of power solutions for our customers.

Why choose us over other suppliers? There are a number of reasons. Firstly, with over 17 years of experience in the power industry, we have the understanding and expertise in this industry to help our customers solve their problems better. Secondly, we have a perfect ISO9001 quality management system and product patents, which proves our product quality and innovation ability. Thirdly, we provide fast delivery and high quality after-sales service, which makes our customers worry-free. Lastly, our prices are competitive, providing customers with cost-effective products.

In addition to product sales, we offer a range of services. We accept FOB delivery terms, USD and RMB as payment currencies, and bank transfer as payment methods. Our service tenet is to let our customers enjoy the best quality service, and customer satisfaction is our ultimate goal.

Overall, our company is a leading company specializing in the power industry, we have rich experience, high quality products, fast service and competitive price. Choosing us is choosing a trustworthy partner, and we will be dedicated to providing you with the best quality service.

Company

Shandong Fuda Transformer Co., Ltd. is an enterprise specializing in the general contracting of power engineering construction and installation (repair and testing) of power facilities; the production, development and sales of transformers, box-type substations, high and low voltage complete sets of equipment and other products. The company is located in Liaocheng, a water city in the north of the Yangtze River with a long history and beautiful scenery. Liaocheng is located in the hinterland of the Central Plains and in the west of Shandong Province, bordering Henan and Hebei. It is located at the junction of the three major regions of East China, Central China, and North China. It is the intersection of the Beijing-Kowloon Railway, Jiaoji Railway, Jiaoji-Han Railway, and Jizheng High-speed Railway in Shandong Province It is the largest transportation and logistics hub spanning the three provinces of Hebei, Shandong and Henan, and the transportation is very convenient.
