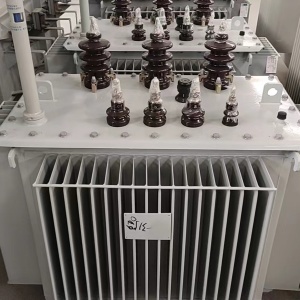

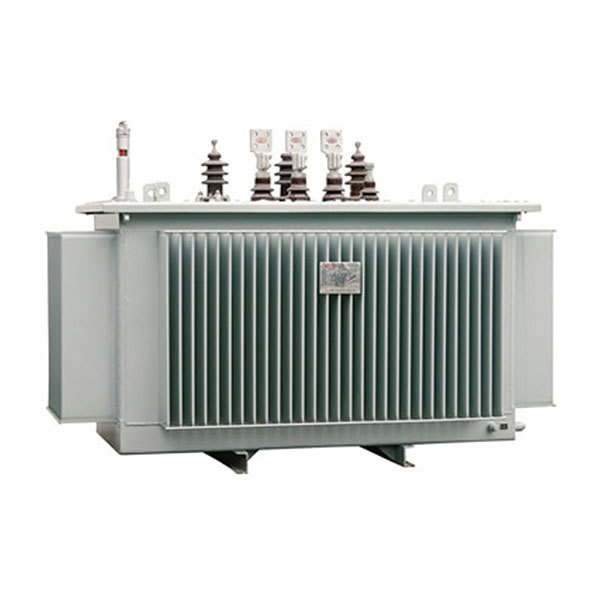

s(b)h15 -m amorphous alloy oil-immersed transformer

Amorphous alloy oil-immersed transformer is made of new type of magnetic material-amorphous alloy forming the ironcore of transformer.Its performance is stable and reliable,and energy-saving effect is remarkable.It is the ideal productof updated distribution transformer.

Product features

◆ The core of amorphous oil-immersed transformer is made of alloy strip coiling.The no-load loss is 65%less thanS11 transformer with ordinary siicon steel sheet for core.The transformer 'no-load loss is very low so the energyconsumption and the operation cost are greatly lower than silicon steel transformer.

◆ Low voltage winding of the transformer adopts foil winding,which enhance the ability of anti short circuit oftransformer.

◆ The transfomer adopts vacuum oiling,which ensure stable insulation performance.

◆ Transformer is fuly sealed structure,prolong service life,maintenance free.

Scope of application

The transformer is suitable for use in urban residential area and low load,long no-load time on the agricultural net,urban and rural residents lighting,and power plant.

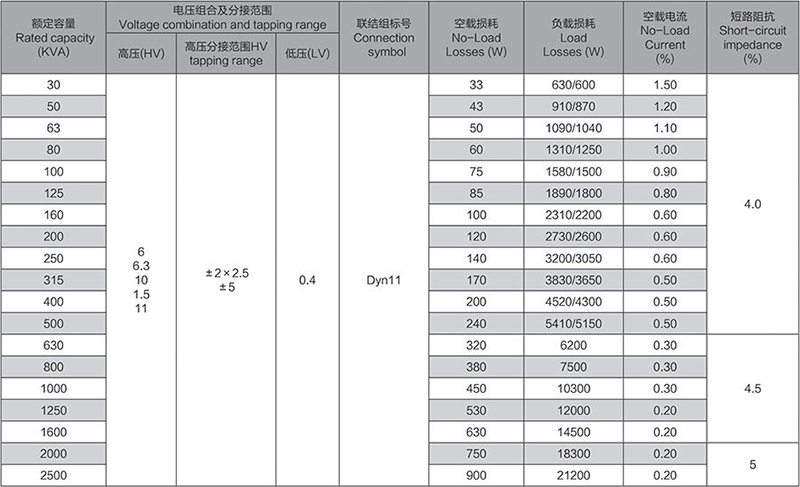

Technical parameters

Note

1.When iron core is three phase three column,according to uesr's need the connected group can adopt Yyn0 group.

2.For the rated capacityof 500KV and below the three-phase transformer,diagonal lines in the table above for load loss value is suitable for the Dyn11 connection group,and slash at the bottom of the load loss value applies to YynO link group.

3.According to user's need,we also can choose other loss value.

4.According to user's need,we can provide other high subsection range of three-phase transformer.

FAQ

1.Are you a direct manufacturer or a trading company?We  have  a  processing  plant, and  we also have our own international  trade department. We produce and sell our own products.

2.What products can you provide?We mainly produce 110K-220KV oil-immersed power transformers, 35KV series transformers, new energy-saving single-phase  transformers, laminated core oil-immersed  transformers series,  three-dimensional triangular  core  transformer series, amorphous alloy core transformer series, non-encapsulated H-class  dry-type transformer series, resin insulated dry-type  transformer  series,  phase-shifting   rectifier  transformer ,  box-type  transformer series   (European-style  box transformer),  combined  transformer  series  (American-style box transformer) ,  wind  power transformer, photovoltaic transformer, etc.

3.What are the main application areas of your products?Our products are widely used in urban and rural power grids, as well as petrochemical, metallurgical, textile enterprises, mines, ports, residential areas, etc.

4.Can you make customized products?Yes, we have a professional design department that can make customized products. We develop and produce products based on the drawings or samples provided by customers.

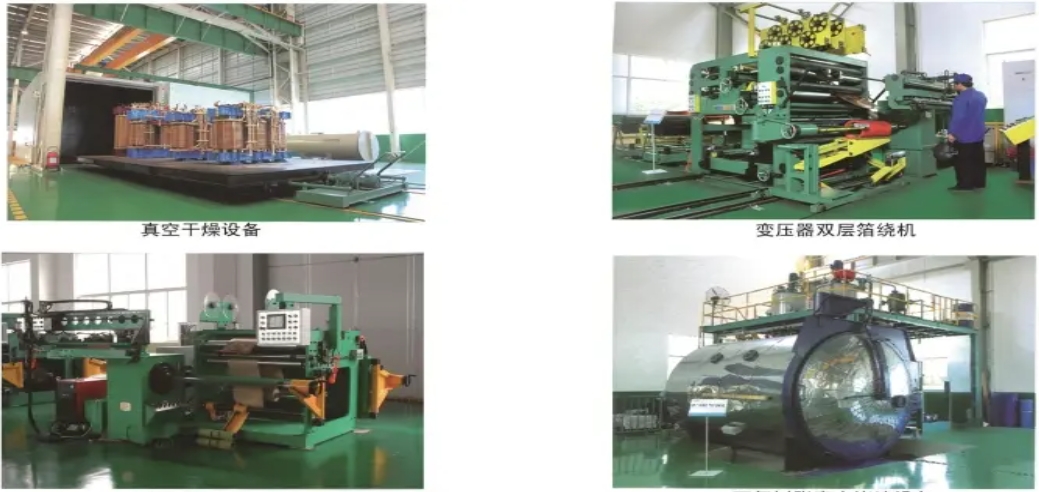

5.What is your company’s production capacity?Our company covers an area of 5,0000 square meters and has total assets of 370 million. It has CNC cross-cutting lines, Qiyuan slitting lines, fully automatic center column lines, fully automatic lamination units ,  horizontal winding  machines, automatic winding machines, Automatic bending machines, lightning impact equipment, vertical winding machines, high and low voltage winding machines, modern drying equipment, foil winding machine, vacuum pouring tank, vacuum  oiler, nitrogen-filled annealing furnace, epoxy vacuum pouring equipment, Welding robot group, capacitor tower, double-section high vacuum oil purification equipment, assembly rack, hydraulic device ,  intelligent  laser  cutting  machine , CNC  punch press, kerosene and gasoline drying equipment, modern laboratory, dust-free assembly room, full set of testing equipment, etc. 260 sets. The products form 22 series ,  more  than  100  varieties ,  and  more  than  600  specifications,  with  strong supporting capabilities.

6.How does your company ensure product quality?First of all, we will conduct corresponding inspections after each process. For completed products , we  will  conduct  full inspections according to customer requirements and international standards; Then, we have complete testing equipment in the industry: fully automatic transformer comprehensive testing system, lightning surge equipment, high-voltage noise shielding room, oil dielectric loss and resistivity tester, modern laboratory, etc.
